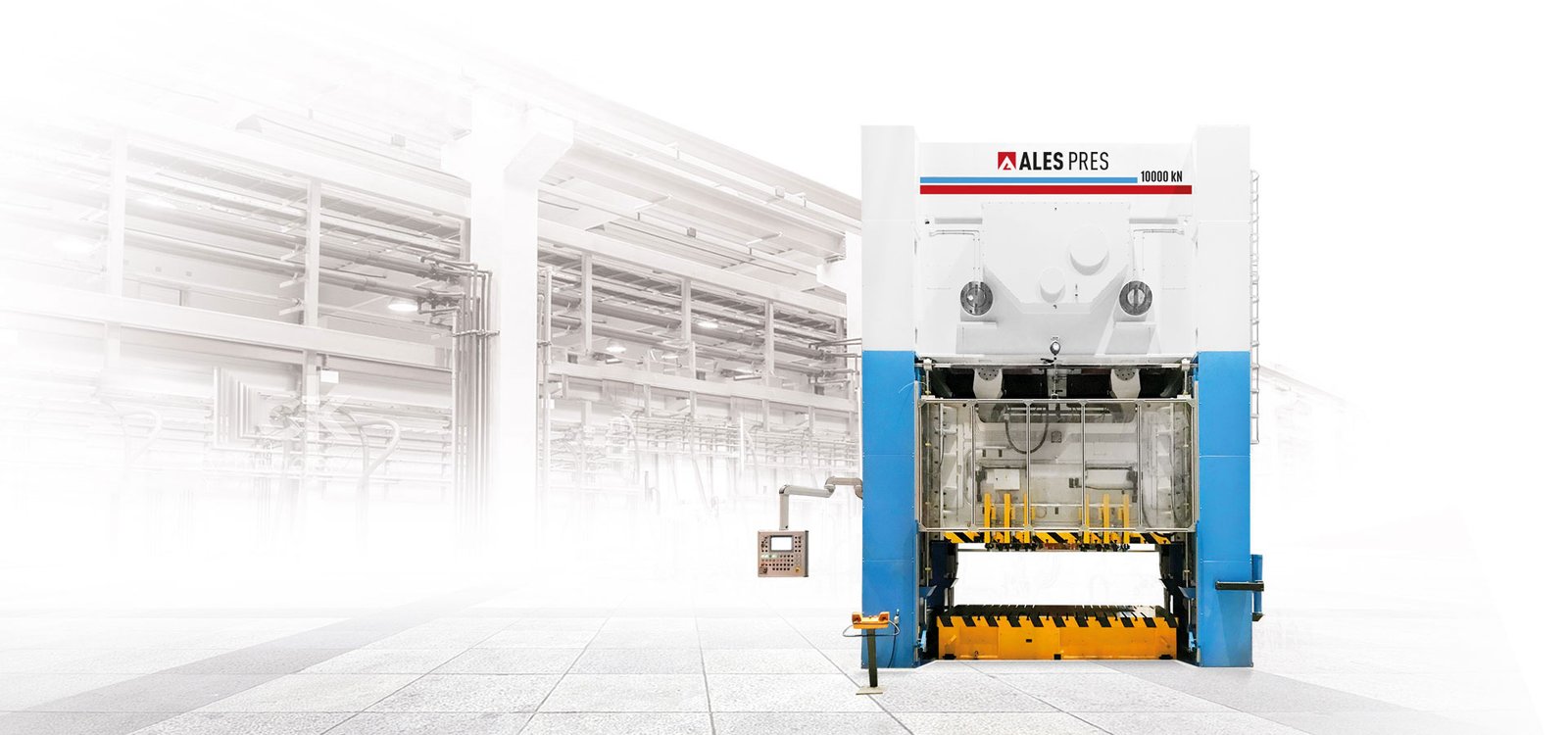

Link motion, also known as link drive press machines, are an advanced form of eccentric presses. Their slowed motion near the bottom dead center improves precision and extends die life. At ALES PRES, we offer link motion press solutions to elevate your production quality.
Precision and Performance with Link Motion (Link Drive) Press | ALES PRES
Optimized Speed Profile:
Unlike standard presses, the speed during the stroke is not constant. For example, in a 200 mm stroke:
Longer Dwell at Bottom:
The ram stays 20–30 milliseconds longer at the bottom, which is useful in deep drawing and precise forming.
Longer Die Life:
Lower shock and impact extend die life by 2–3 times.
Better Energy Use:
The system uses stored energy more efficiently, reducing waste and stress on the system.
High Precision:
Ideal for parts that require tight tolerances, consistent thickness, and smooth surface finishes.
We continue to bring our expertise in press technology together with industry-leading companies. In this context, we have successfully completed…
Link Motion Press are high-performance mechanical eccentric presses that offer major advantages in shaping accuracy, material flow control, and die…
As Ales Pres, we continue to deliver high-performance press solutions that add value to industrial production. In this context, we…
| Feature | Value |
| Mechanism | Link Drive (Articulated Linkage System) |
| Drive Type | Mechanical drive (“Eccentric shaft or Gear-to-Eccentric” system) |
| Transmission System | Eccentric shaft or Gear-to-Eccentric |
| Capacity | From 100 tons to 2.500 tons (custom-built upon request) |
| Stroke Length | From 100 mm to 800 mm (custom-built upon request) |
| Stroke Rate | From 10 Spm to 80 Spm (Custom-Built upon request) |
| Number of Pressure Points | 1 / 2 / 4 Connecting Rods, Depending on Press Type |
| Table Size | From 1.000 mm to 6.500 mm (Custom-Built Upon Request) |
| Optional Features | Anti-vibration springs, movable safety guards, quick die change systems (QDCS), sound insulation cabin |
Link Motion Press are high-performance mechanical eccentric presses that offer major advantages in shaping accuracy, material flow control, and die life. They are essential equipment in modern metal forming industries that demand precision and efficiency.
It is a type of press with a mechanism that slows down the slide (ram) movement before it reaches the bottom, using special link parts.
Because the slide moves slower near the bottom compared to standard eccentric presses, they are better for deep drawing operations.
It depends on the stroke length and the type of work, but usually it’s around 50–100 mm.
Yes, they are one of the most preferred types for transfer work due to their long stroke lengths.
Yes. Since the slide moves slower at the bottom, it causes less wear, so the die lasts longer than with standard presses.
No. It is decided during design and cannot be changed after production.
Because it has a more complex mechanical system, which increases cost and performance.
Yes. They are especially good for parts that need a smooth surface or detailed, uneven shapes.
They can, but it’s not common. For fast, forceful cutting, eccentric presses are better. Link Motion presses are mostly used for forming.
No. It’s a completely different drive system and needs to be specially designed from the beginning.
